Cut to Length Machine

Cut to Length Machine
Cut to Length Machine
Product Code : 03
Brand Name : BHOOMI
Product Description

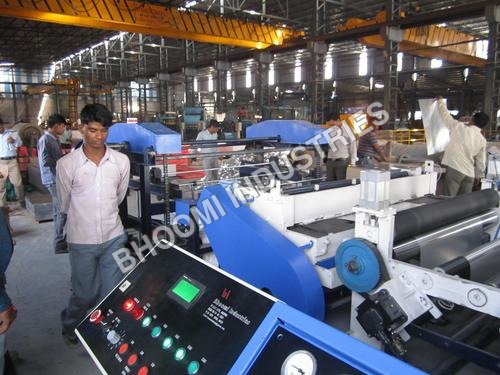

Optimizing the core & innovative technology, we manufacture a perfect line of Cut To Length Machines. These are designed & engineered for high performance and dependability. Manufactured with precision, these machines are technically sound and have a long functional life. Also, these are available in various specifications and sizes to meet different requirements of clients. Our cut to length lines automatically feeds as well as cuts to the needful sheets lengths. These are technologically perfect machines that have been valued for their performance & uniformity in output, in the market.

Key Features:

  • Cut to length lines range is: 250 mm to 450 mm width.
  • Coil thickness range is: 0.009 mm to 0.025 mm (Material - Aluminum Foil).
  • Coil Weight: 1.0 ton to 8 tons.
  • Operation: Mechanized Fly Wheel & Clutch.
  • Control Line Encoder: Based on PLC.
  • Control Line: Servo Motor Based & Electrical Stopper.

Other info:

Cut to Length Machine

Optimizing the advanced technology, we manufacture a qualitative range of Cut To Length Lines that are appreciated for their high performance and reliability. Designed with precision, these are technically accurate and have long functional life. Further, these machines are available in varied sizes and specifications to meet the diverse requirements of clients

Cut To Length Machine



The cut to length lines automatically feeds & cuts to required lengths of sheets by power shear/ fly shear Using high precise straighteners. the machine has a single or double straightener as per requirements. These are technically accurate machines that have been assessed on performance & consistency in output before releasing to market.

Features :

  • Cut to length lines varied from 400 mm to 1500 mm width

  • Coil thickness varies from 0.10 mm to 8 mm (Aluminum-Material)

  • Weight of Coil varies from 1.0 ton to 8 tons

  • Operation : Mechanical Fly wheel and Clutch

  • Control Line : Electrical Stopper & Servo Motor based.

  • Control Line Encoder : PLC Based


SPECIFICATIONS & FEATURES

  • We are manufacturing CTL Lines up to 400 - 1500 mm coil width.

  • Thickness of the Coil varies 0.10 - 8 mm of (Aluminum Material).

  • Coil Weight varies 1.0 MT to 8 MT.

  • Shearing machines are available both type. (Pneumatic clutch operated & Mechanical operated).

  • Straightener / Leveler machine rollers are made of Alloy Steels.

  • Driven by gears or auxiliary gear box.

  • Line speed up to 30 to 40 Meters per Minute.

  • Electrical Stopper Control line - optional.

  • Encoder with PLC Control base line - optional.

  • NC Servo Motor high speed control line - optional.
