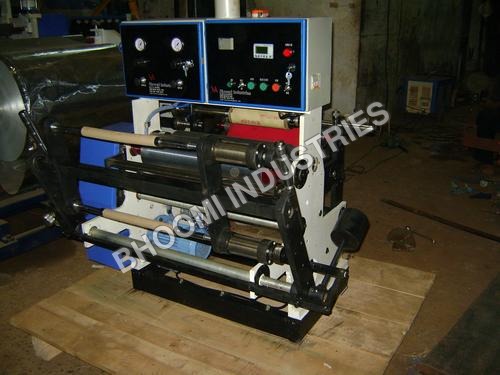

Cling Film Rewinding Machine

Cling Film Rewinding Machine
Cling Film Rewinding Machine
Product Code : 001
Brand Name : Bhoomi Industries
Product Description

Utilizing the skills and experience, we manufacture, supply and export Cling Film Rewinding Machine. Offered machine is equipped with chrome-coated rewinding cylinder to ensure smooth and trouble free rewinding process. This machine has the capabilities to produce 1000 rolls of 30 meters in every 10 hours. Our offered machine is fabricated by employing innovative technology and techniques in order to provide machine with technical accuracy and longer functional life. In addition, we offer this Cling Film Rewinding Machine in different sizes and specifications to meet the diverse requirements of patrons.

Features:

  • Seamless operation
  • Optimum performance
  • Longer service life
  • Robust construction

Other info:

Cling Film Re-winder Machine:

The machine is a shaft less re-winder where the operator has to load the core on the drum i.e. rewinding cylinder. The rewinding cylinder is especially Hard Chrome-Plated; this ensures smooth, trouble free rewinding. The machine is fitted with a electronic counter which provides information on the desired length of roll to be produced, the total production at any given point of time, memory back up in case of Power breakdown, and a high level of accuracy.

Re-winder system works on Dual Core Rewinding to achieve fast production.

The counter-meter can be programmed in such a way that the machine, after starting, can stop automatically, after the desired length of the Aluminum Foil is rewound.

There is an A.C. frequency drive fitted in the machine which allows adjustment of the speed of the machine. This facilitates in increasing or decreasing the production rate.

Specifications

Working Width

300 mm / 450 mm

Parent Roll Core Inner Dia

76mm

Rewinding Speed

130 mtrs / minute

Accuracy in rewinding length

+/- 0.050 mtr

Motor

1.00 H.P. A.C. Motor with A.C. frequency drive

Capacity

1000 Rolls of 30 mtrs. Each in 10 hrs.

Max.

Length of one Roll which can be rewound: 300 mtrs

Net wt of Machine

225 kg Apprx.

Space required

43" x 47' x 40"

Re-winder Core Inner Dia

25 / 76 mm
