Aluminium House Foil Rewinding Machine

Aluminium House Foil Rewinding Machine
Aluminium House Foil Rewinding Machine
Product Code : 09
Product Description

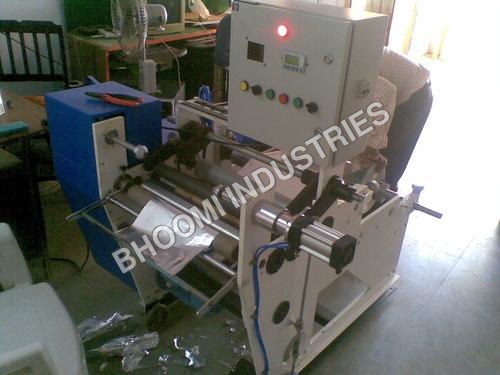

Aluminum House Foil Re-winder Machine: -

The machine is a shaft less re-winder where the operator has to load the core between the Grippers resting between two rewinding cylinder. The rewinding cylinder is especially Hard Chrome-Plated; this ensures smooth, trouble free rewinding. The machine is fitted with a electronic counter which provides information on the desired length of roll to be produced, the total production at any given point of time, memory back up in case of Power breakdown, and a high level of accuracy.

The counter-meter can be programmed in such a way that the machine, after starting, can stop automatically, after the desired length of the Aluminum Foil is rewound.

There is an A.C. frequency drive fitted in the machine which allows adjustment of the speed of the machine. This facilitates in increasing or decreasing the production rate.

Specifications

Working Width

300 mm / 450 mm

Parent Roll Core Inner Dia

65mm/76mm

Rewinding Speed

150 mtrs / minute

Accuracy in rewinding length

+/- 0.050 mtr

Motor

1.00 H.P. A.C. Motor / 2.00 H.P. A.C. Motor with A.C. frequency drive

Capacity

2700 Rolls of 9.00 mtrs. Each in 10 hrs.

Max.

Length of one Roll which can be rewound: 100 mtrs (approx 1 kg)

Net wt of Machine

300 kg Apprx.

Re-winder Core ID

33 mm / 36 mm

Space required

43" x 47' x 40"
